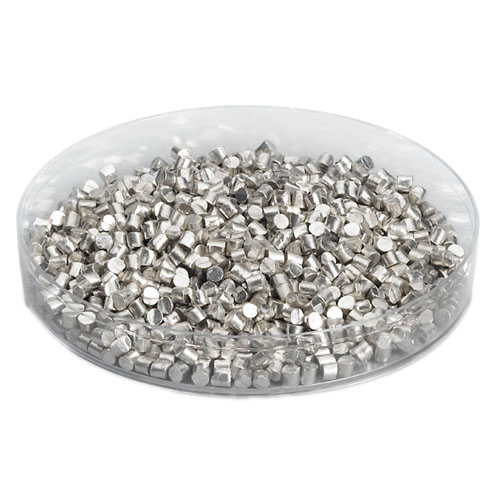

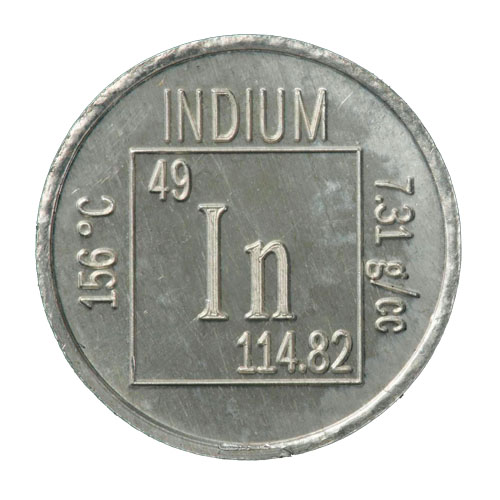

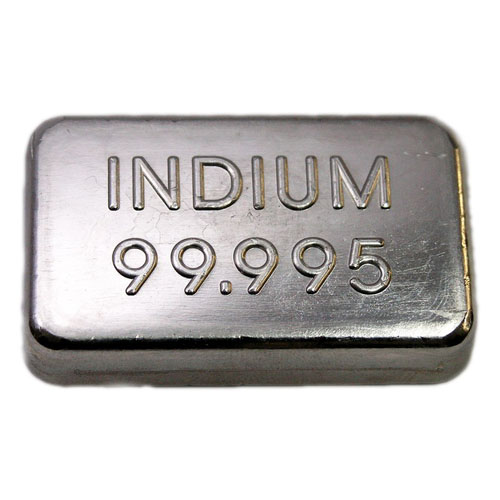

Indium in Rare Metal Standard Chunk Ingot
Indium ingots purity 99.995%, 99.999%, 99.9999%
Indium powder purity 99.99% size 100/200/325mesh,500/600mesh
Indium Tin Oxide powder purity 99.99% size 20-70nm
Anhydrous Indium Chloride purity 99.99%
Product Name | Indium Metal Ingot |
Appearance | silver-white metal luster |
Size/ Weight | 500+/-50g per ingot |
Molecular Formula | In |
Molecular Weight | 8.37 mΩ cm |
Melting Point | 156.61°C |
Boiling Point | 2060°C |
Relative Density | d7.30 |
CAS No. | 7440-74-6 |
EINECS No. | 231-180-0 |
Properties | soft and tetragonal crystal system, good ductility,plasticity |
Uses and properties
The symbol used here is the Japanese kanji character ‘hon’. It means ‘origin’. Indium is named after the bright indigo line in its spectrum. The Japanese discovered that cotton was a difficult fabric to dye, except with indigo. So, indigo dye was widely used to colour cotton throughout the Edo period (1603–1867).AppearanceA soft, silvery metal that is stable in air and water.
Uses
Most indium is used to make indium tin oxide (ITO), which is an important part of touch screens, flatscreen TVs and solar panels. This is because it conducts electricity, bonds strongly to glass and is transparent.Indium nitride, phosphide and antimonide are semiconductors used in transistors and microchips.
Indium metal sticks to glass and can be used to give a mirror finish to windows of tall buildings, and as a protective film on welders’ goggles. It has also been used to coat ball bearings in Formula 1 racing cars because of its low friction.
An indium alloy has been used for fire-sprinkler systems in shops and warehouses because of its low melting point.Biological roleIndium has no known biological role. It is toxic if more than a few milligrams are consumed and can affect the development of an embryo or foetus.
Natural abundance
Indium is one of the least abundant minerals on Earth. It has been found uncombined in nature, but typically it is found associated with zinc minerals and iron, lead and copper ores. It is commercially produced as a by-product of zinc refining.
Indium Ingot | |
Purity | 99.995%,99.999% |
Appearance | Shined with metallic luster |
Color | Silver white |
Density | 7.31g/cm3 |
Melting point | 156.76 °C |
Boiling point | 2073 °C |
Weight per ingot | about 500g per ingot |
Inner Packing | 1 ingot per plastic bag |
Outter Packing | by carton or by wooden case,25kg or 20kg each. |
Supply ability | 500kgs / month |
Min order quantity | 1kg |
Applications | 1.Widely used for indium film,flat panel display,LED light,indium solders,photovoltaic, |
target materal, and also used in electronics & alloys, etc. | |
2.Also used in fabricating works,and cryogenics & vacuum applications | |
3.Also used in ITO film,sealing element in low temperature,solubility anode and nuclear | |
reactor control bar. |
Detailed Information of Indium ingot:
Application direction
Low temperature alloy, bearing metal and semiconductor, LED display, ITO target materials, manufacturing a variety of alloy, special welding, coating, electron industry, binding targets.
Storage conditions
Metal indium ingot should be stored in dry, cool and sealing of the environment, can not be exposure to air, in addition should avoid the heavy pressure, according to ordinary goods transportation.
COA In≥99.995% Cd≤0.0003% Cu≤0.0003% Al≤0.0003% Ti≤0.0004% Sn≤0.0004% Fe≤0.0003%
Packaging Details: 500 grams per ingot, N.W. 50kilos per wooden case
Delivery Detail: In 7-10 days
Physical Property | |
Appearance | Silver-white |
Size/ Weight | 500+/-50g per ingot |
Molecular Formula | In |
Molecular Weight | 8.37 mΩ cm |
Melting Point | 156.61°C |
Boiling Point | 2060°C |
Relative Density | d7.30 |
CAS No. | 7440-74-6 |
EINECS No. | 231-180-0 |
Detail Specification:
Item | Test | Result |
In (%) | ≥99.995% | >99.995% |
Sn(ppm) | ≤5 | 2.9 |
Pb(ppm) | ≤5 | 3.8 |
Cd(ppm) | ≤5 | 1.0 |
Fe(ppm) | ≤5 | 3.7 |
Zn(ppm) | ≤5 | 2.6 |
Cu(ppm) | ≤5 | 3.1 |
Al(ppm) | ≤5 | 2.8 |
As(ppm) | ≤5 | 1.0 |
Tl(ppm) | ≤5 | 2.4 |
Element | Analysis Result(%) |
In | |
A1 | 0.0001 |
Ag | 0.00002 |
As | 0.00001 |
B | 0.00001 |
Ba | 0.00001 |
Bi | 0.00001 |
Ca | 0.00001 |
Cd | 0.0001 |
Co | 0.00001 |
Cr | 0.00002 |
Cu | 0.0002 |
Fe | 0.0001 |
Mg | 0.0002 |
Mn | 0.0001 |
Mo | 0.00001 |
Ni | 0.00001 |
Pb | 0.0002 |
Sb | 0.00001 |
Si | 0.0001 |
Sn | 0.0001 |
Ti | 0.00001 |
V | 0.00001 |
Zn | 0.0001 |
